Double End Studs

By Sigma Fasteners on January 11, 2017

Duplex Stainless Double End Studs Bolts



Double End Studs – Double ended studs

Double End Studs Bolts
Double End Studs

At Sigma Fasteners we provide mission critical bolting products for the nations leading manufacturers of pressure control equipment for controlling pressures during drilling and oil production.

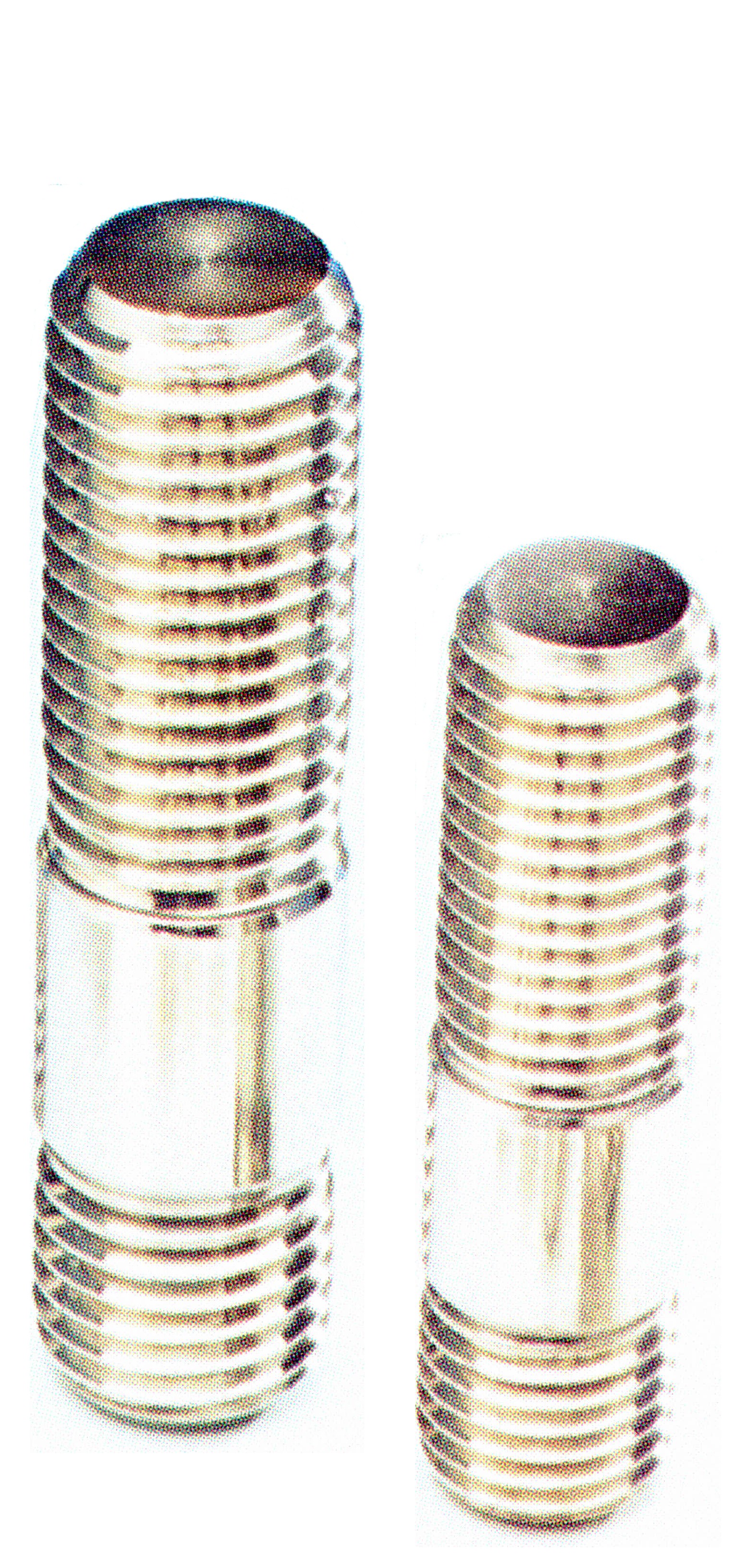

Double-end studs used by many of these manufacturers have equal-length threads on each end to accommodate a nut and are threaded to a Class 2A fit. Length of stud is measured overall. Both ends have chamfered points, but round points may be furnished on either or both ends at the manufacturer’s option, This style is furnished in the same four types listed for tap-end studs. Double-end studs are used for flange bolting or other applications where torching from both ends is necessary or desirable.

Most steel grades not heat treated or quenched and tempered can be furnished on special order for production quantities. Only the Type 2 continuous thread studs made to specification ASTM A193 grade B7 are stocked in a full range of sizes.

ASTM Material Selection Chart B7, B7M, L7, L7M, 660, 718 Inconel, MP35N

Inconel 718 Stud Bolts

By Sigma Fasteners on November 15, 2016

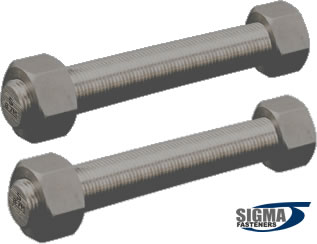

Inconel 718  Studs Nuts and Bolts

Tap end stud bolts are used in high pressure situations in the petrochemical industry for OEM and repair situations on flanged to main body connections. The tap end stud bolt has 2 A and 3A fit requirements to achieve complete connection

with one heavy hexagon nut, on the longer 2A fit side. The shorter 3A fit side is inserted into a threaded hole.

Stud Bolts
Stud Bolts

Inconel 718 is typically used in high strength applications where fastener operating temperatures can reach 700 degrees Celsius. Oxidization, thermal cycling and high pressures can create mayhem in bolted joints causing fasteners to loosen and lose grip strength.  The top wellhead and valve OEMs count on High Temperature Bolting both Studs and Bolts for extreme temperatures applications. Sigma Fasteners is a leader in manufacturing Inconel 718 bolting.

The advantages of our Inconel 718 products include

  • Minimize oxidation and corrosion at high temperature.
  • Optional coatings to minimize galling.
  • Available in metric and Inch threads

Sigma can lower your cost for tap end studs with contract pricing or managed inventory.Sigma can supply nuts and bolts or studs.

ASTM Material Selection Chart

Catalog: Tap End Stud

    Your Name (required)

    Your Email (required)

    Phone Number (required)

    Company (required)

    Message

    Attach File: Allowed File types: .pdf .txt .tif .tiff .jpg .doc .docx .dwg .xls .xlsx
    Max 2MB

    Tap End Stud

    By Sigma Fasteners on November 13, 2016

    Tap End Stud Bolts

    Sigma Fasteners manufactures Tap End Stud bolts to your print, Tap End Stud Bolt Standard or AWHEM Standard in all ASTM grades.

    Tap End Stud Bolts
    Tap End Stud Bolts

    Tap end studs have a short thread length on the tap-end side typically threaded tor Class UN-3A fit. This side is screwed into a tapped hole. The nut end  of the stud is threaded with a Class UN-2A fit. Length of the stud is measured form end to end. The tap end has a chamfered point, but the nut end may have either a 30° or 45° chamfered end or round raduised end, at the customers option.The tap end can be measured from the end to last scratch, end of the chamfer to the last full thread or any combination of last scratch, last full thread, end or end of chamfer.

    Tap-end studs in standard and exotic metals with multiple finishes:

    ASTM B7, B7M, B8, B8M, 660,718, 17-4ph, MP35 and more.

    Unfinished, SermaGard, Xylan, PTFE. Moly, zinc or cad plated.

    Sigma can lower your cost for tap end studs with contract pricing or managed inventory.

    ASTM Material Selection Chart

    Catalog: Tap End Stud

      Your Name (required)

      Your Email (required)

      Phone Number (required)

      Company (required)

      Message

      Attach File: Allowed File types: .pdf .txt .tif .tiff .jpg .doc .docx .dwg .xls .xlsx
      Max 2MB

      Stud Bolts

      By Sigma Fasteners on May 25, 2016

      Stud bolts for Pressure-Temperature Piping
      Stud bolts for Pressure-Temperature Piping
      Stud Bolts are used in High Pressure & Temperature flanged fittings

      REFERENCE
      Stud bolts for high pressure & high temperature applications conform to the requirements of ANSI/ASME B16.5, Steel Pipe Flanges and Flanged Fittings.

      LENGTH-FIRST TO FIRST

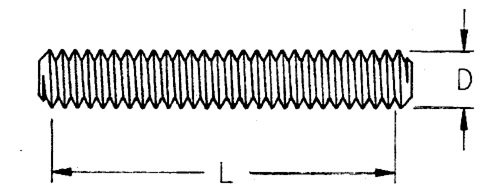

      The length of stud bolt, measured parallel to the axis, is the distance from first thread to first thread. First thread is defined as the intersection of the major diameter of the thread with the base of the point. Please see the drawing above-this is confusing to most users!! Stud bolts are normally available from stock in 1/4 inch length increments. Length tolerances, all stud bolt sizes, shall be as tabulated below:

      Length, in. Length Tolerance, in.
      to 12                           +/-0.062

      over 12 to 18          +/-0.125

      over 18                      +/-0.250

      POINTS
      Points shall be flat and chamfered, or sheared at option of the manufacturer. When points are flat and chamfered, the diameter of the flat shall not exceed the minor diameter of the thread, and shall be not less than one or more than two complete threads as measured from the extreme end parallel to the axis.

      THREADS
      Threads shall be Unified inch coarse thread series (UNC), Class 2A, for all stud bolt sizes 1 in. and smaller, and Unified inch 8 thread series (8 UN), Class 2A, for all stud bolts larger than 1 in., in accordance with ANSI/ASME B1.1. Acceptability of screw threads shall be determined based on ANSI/ASME B1.3.

      MATERIAL
      Chemical and mechanical requirements shall be specified by the purchaser and shall be in accordance with applicable ASME, ASTM, and ANSI codes and specifications current at the time of ordering.

      ASTM Material Selection Chart – Stud bolas are available in ASTM A193 Grade B7, B7M, L7, L7M. As well as 660, 718 Inconel, Mp35N and other high nickel alloys and stainless steels.

      DESIGNATION
      It is recommended that stud bolts be designated in the following sequence: product name, nominal size, threads per inch, length, material, and protective finish, if required.

      Example: ANSI/ASME B16.5 stud bolt,
      5/8-11 x 3-1/2, ASTM A193, Grade B7, Zinc & Clear Chromate Plated
