660 Stud

Tap End Stud – AWHEM Recommendation

By Sigma Fasteners on December 21, 2016

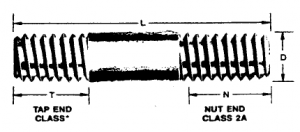

Tap End Stud

D Diameter – Nominal Stud Sizes

Tap End Stud
Tap End Stud

L Length – Measured end to end
T For 6B & 6BX studded flange connections with R, RX & BX gaskets, thread length maximum on end = 1 diameter + 1.5 pitch + 1/16-0
N Nut end thread length for 6B & 6BX studded flange connections with R, RX & BX gaskets shall be 2-1/2 diameters of full thread minimum.
* Class of Threads – Tap end threads may be furnished in any class thread specified. Nut end threads shall be American Standard Coarse or Fine series, Class 2A or 8 UN.

When ordering, please specify:
Diameter (D); Length (L); End-to-end dimension. (If length is figured first thread to first thread, order
must so specify.)
Tap end thread length (T) and thread series
Nut end thread length (N) and thread series

Double End or Tap End Studs are available in either rolled or cut threads. When the threads are rolled,
the full thread dimensions will increase slightly, and the diameter of the bodies will be undersized to the
pitch diameter of the thread.
Tap End Studs are available in ASTM A193 Grades of material or special materials. Sigma stocks the most
frequently used sizes of tap end studs in ASTM A193 Grade B7. Tap end studs can also be plated or
coated if allowances are made for coating thickness and thread fit.

Prints should be furnished on Double end or Tap End studs whenever possible.
** American Association of Wellhead Manufacturers –

TECHNICAL REPORT TR9501 Revision A

RECOMMENDATION FOR INTERCHANGEABLE STUD BOLTS AND TAP END STUDS FOR API SPEC 6A FLANGES

Tap End Stud

By Sigma Fasteners on November 13, 2016

Tap End Stud Bolts

Sigma Fasteners manufactures Tap End Stud bolts to your print, Tap End Stud Bolt Standard or AWHEM Standard in all ASTM grades.

Tap End Stud Bolts
Tap End Stud Bolts

Tap end studs have a short thread length on the tap-end side typically threaded tor Class UN-3A fit. This side is screwed into a tapped hole. The nut end  of the stud is threaded with a Class UN-2A fit. Length of the stud is measured form end to end. The tap end has a chamfered point, but the nut end may have either a 30° or 45° chamfered end or round raduised end, at the customers option.The tap end can be measured from the end to last scratch, end of the chamfer to the last full thread or any combination of last scratch, last full thread, end or end of chamfer.

Tap-end studs in standard and exotic metals with multiple finishes:

ASTM B7, B7M, B8, B8M, 660,718, 17-4ph, MP35 and more.

Unfinished, SermaGard, Xylan, PTFE. Moly, zinc or cad plated.

Sigma can lower your cost for tap end studs with contract pricing or managed inventory.

ASTM Material Selection Chart

Catalog: Tap End Stud

    Your Name (required)

    Your Email (required)

    Phone Number (required)

    Company (required)

    Message

    Attach File: Allowed File types: .pdf .txt .tif .tiff .jpg .doc .docx .dwg .xls .xlsx
    Max 2MB

    Stud Bolts

    By Sigma Fasteners on May 25, 2016

    Stud bolts for Pressure-Temperature Piping
    Stud bolts for Pressure-Temperature Piping
    Stud Bolts are used in High Pressure & Temperature flanged fittings

    REFERENCE
    Stud bolts for high pressure & high temperature applications conform to the requirements of ANSI/ASME B16.5, Steel Pipe Flanges and Flanged Fittings.

    LENGTH-FIRST TO FIRST
    The length of stud bolt, measured parallel to the axis, is the distance from first thread to first thread. First thread is defined as the intersection of the major diameter of the thread with the base of the point. Please see the drawing above-this is confusing to most users!! Stud bolts are normally available from stock in 1/4 inch length increments. Length tolerances, all stud bolt sizes, shall be as tabulated below:

    Length, in. Length Tolerance, in.
    to 12                           +/-0.062

    over 12 to 18          +/-0.125

    over 18                      +/-0.250

    POINTS
    Points shall be flat and chamfered, or sheared at option of the manufacturer. When points are flat and chamfered, the diameter of the flat shall not exceed the minor diameter of the thread, and shall be not less than one or more than two complete threads as measured from the extreme end parallel to the axis.

    THREADS
    Threads shall be Unified inch coarse thread series (UNC), Class 2A, for all stud bolt sizes 1 in. and smaller, and Unified inch 8 thread series (8 UN), Class 2A, for all stud bolts larger than 1 in., in accordance with ANSI/ASME B1.1. Acceptability of screw threads shall be determined based on ANSI/ASME B1.3.

    MATERIAL
    Chemical and mechanical requirements shall be specified by the purchaser and shall be in accordance with applicable ASME, ASTM, and ANSI codes and specifications current at the time of ordering.

    ASTM Material Selection Chart – Stud bolas are available in ASTM A193 Grade B7, B7M, L7, L7M. As well as 660, 718 Inconel, Mp35N and other high nickel alloys and stainless steels.

    DESIGNATION
    It is recommended that stud bolts be designated in the following sequence: product name, nominal size, threads per inch, length, material, and protective finish, if required.

    Example: ANSI/ASME B16.5 stud bolt,
    5/8-11 x 3-1/2, ASTM A193, Grade B7, Zinc & Clear Chromate Plated
